ADF-AHF

ADF Gometry series

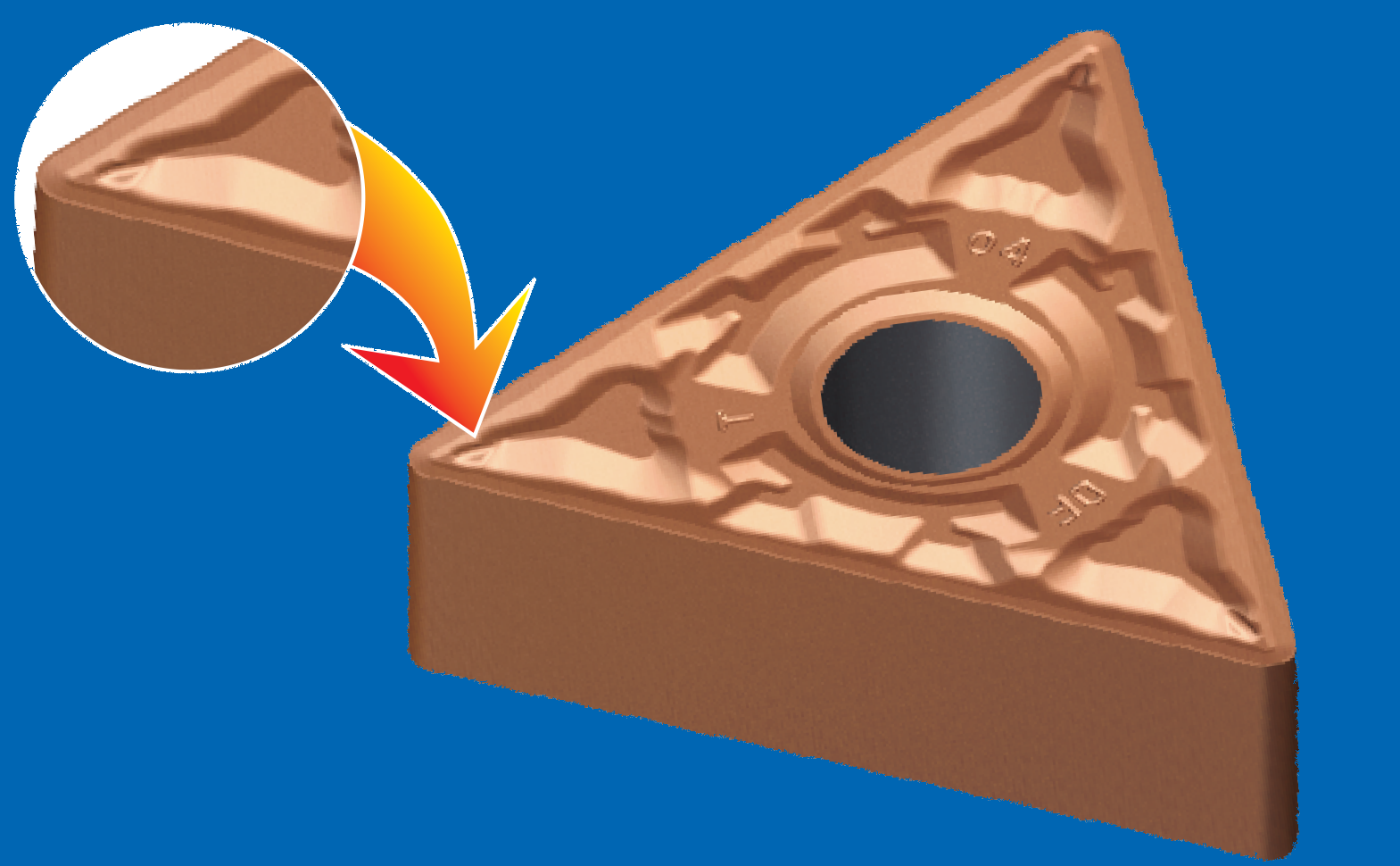

ADF-AHF-1-2

  • Optimized geometry can achieve perfect chip control at a wide range of cutting data. Mainly applied in finish and semi-finish machining of steel as well as stainless steel materials .
  • With precision grinding techniques bring high dimension accuracy and high indexing repeatability
  • Specially designed rake face structure ensures insert strength while greatly reducing cutting force
  • Advanced edge treatment and after coating treatment for excellent surface finish

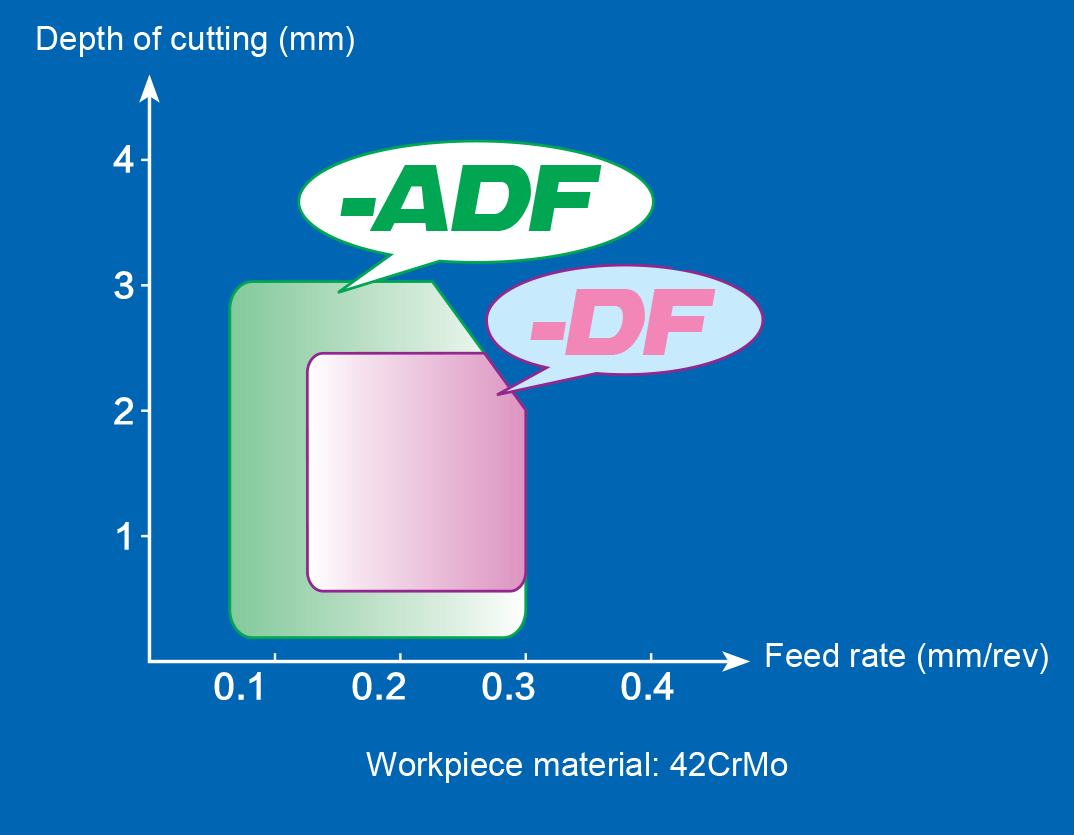

ADF-AHF-1-1

AHF Geometry inserts

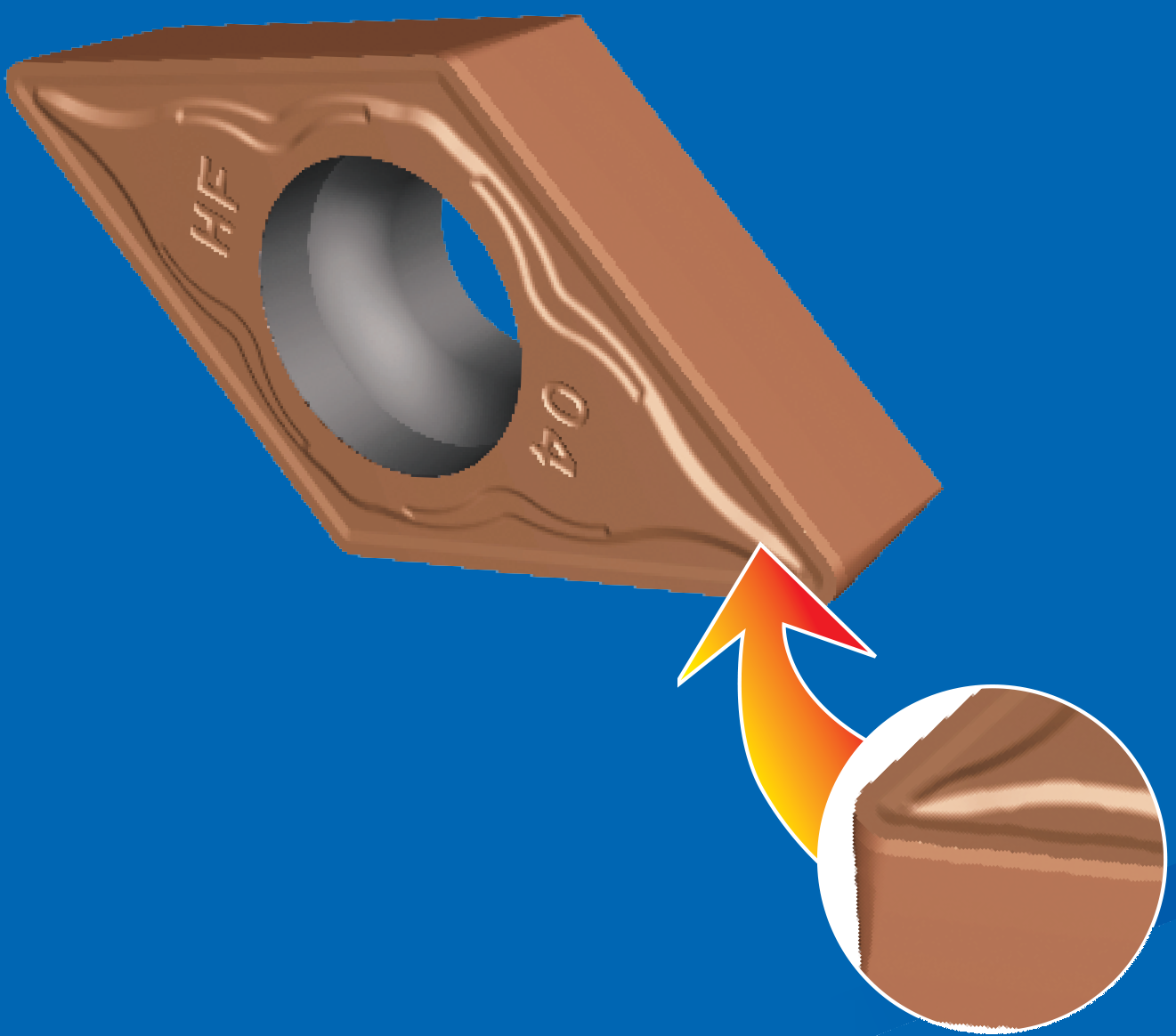

ADF-AHF-2-2

  • Unique vibration resistance geometry brings good surface quality even for long and slender shaft parts.
  • Based on advanced chip control design, general-purpose geometry, mainly applied in finish and semi-finish machining of steel as well as stainless steel materials.
  • Grinding techniques for inserts greatly improve precision.
  • Inserts with positive angle and edge sharper than -ADF geometry for light cutting action. Optimized insert material ensures perfect balance of edge strength and sharpness.

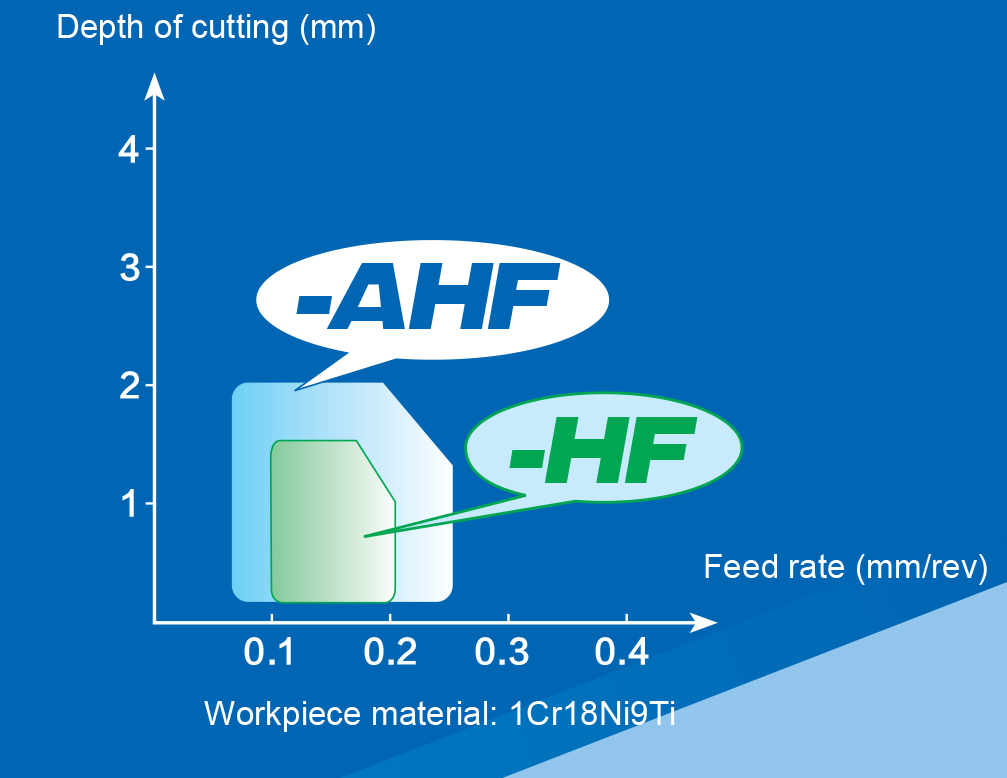

ADF-AHF-2-1

Case

  • Workpiece material : Stainless steel
  • Insert : DCMT11T304-AHF/YB9302
  • Cuttint data: V=200mm/min, ap=1.0mm, f=0.2mm/r

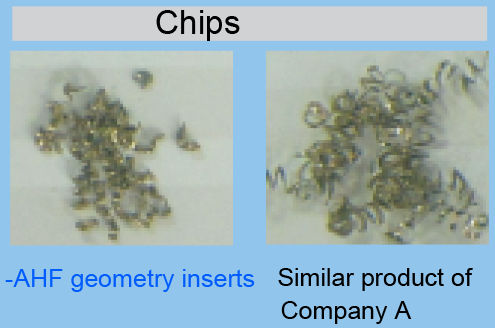

ADF-AHF-2-3

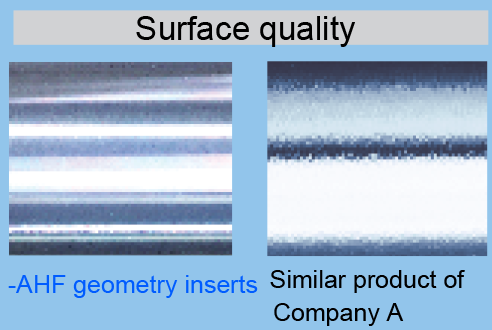

ADF-AHF-2-4
