PML

PML-2

PML Series with dry milling capability

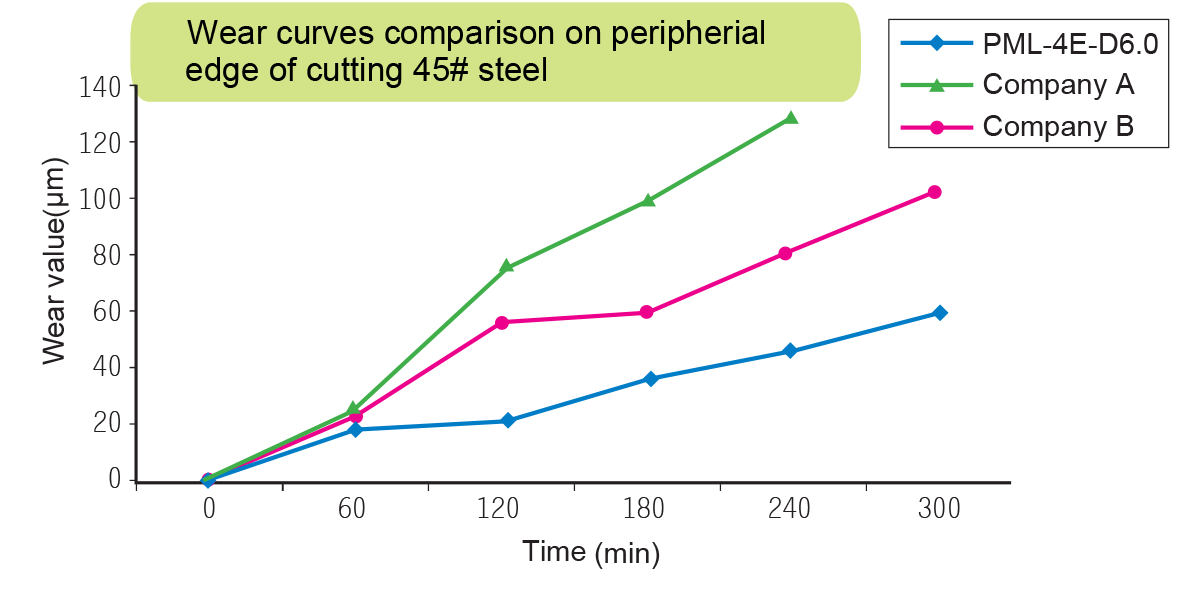

PML-4E-D6.0 Application of machining 45# steel

  • Tool Type : PML-4E-D6.0
  • Workpiece Material : 45# (HB180)
  • Cutting Data : Vc = 150m/min, fz = 0.05 mm/z, ap = 6mm, ae = 0.5mm
  • Machine : Machining Center
  • Cooling System : Air Cooling

PML-3
PML-3-1

PML-4

PML-2B-R2.5 Application of machining grey cast iron HT250

  • Workpiece : Brake Disc
  • Workpiece Material : HT250 (HB200)
  • Tool Type : PML-2B-R2.5
  • Cutting Data : Vc = 150m/min, f = 0.15 mm/r, ap = 0.25mm,
  • Machine : Machining Center
  • Cooling System : Air Cooling
PML-4-1

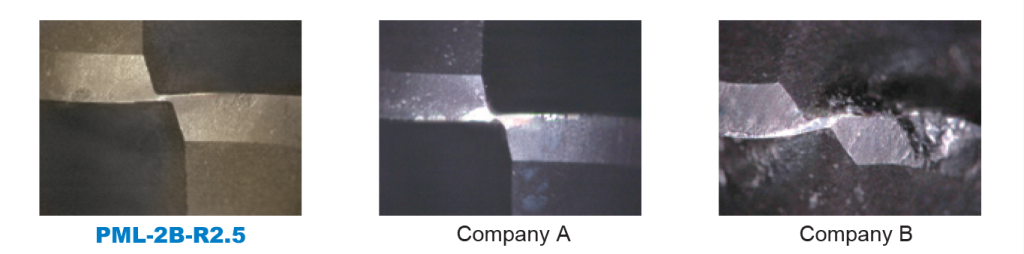

Wear Comparison After Machining 1000 pcs

PML-5

PML Series with wet milling capability

PML-2E-D20.0 Application of machining carbon steel

  • Workpiece : Valve
  • Workpiece Material : Carbon Steel(HB220)
  • Machining Parts : Kidney Slots(Ø24mmX40mmX20mm)
  • Tool Type : PML-2E-D20.0
  • Cutting Data : Vc = 130m/min, f = 0.15 mm/r, ap = 10mm,
  • Machine : Machining Center
  • Cooling System : Water Soluble Cooling

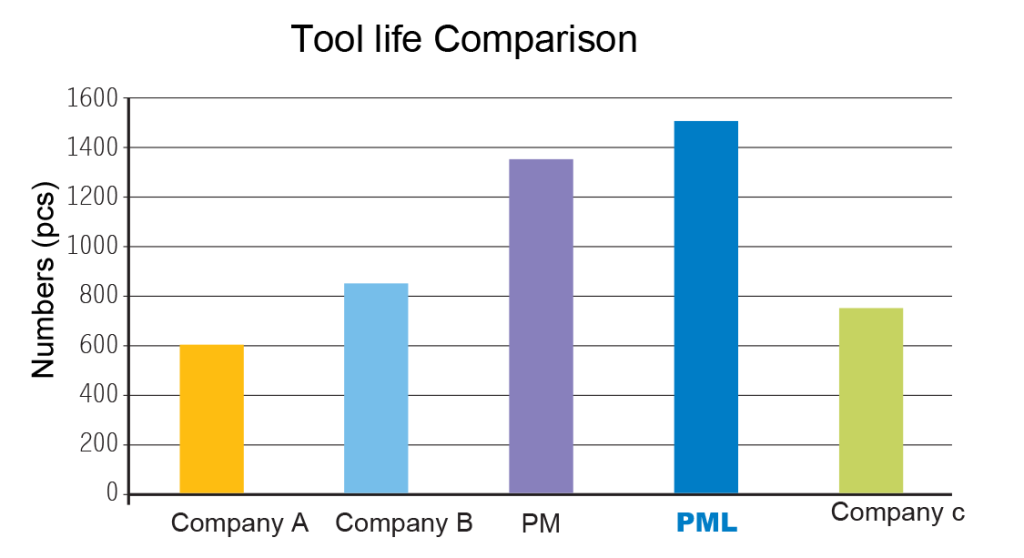

Numbers of Slots

PML-7-1

PML-2B-R3.0 Application of machining pre-hardened steel NAK80

  • Miling Method : Profile Miling
  • Workpiece Material : NAK80(HRC36)
  • Tool Type : PML-2B-R3.0
  • Cutting Data : Vc = 100m/min, f = 0.3 mm/r, ap = 1mm, ae = 1mm
  • Machine : Machining Center
  • Cooling System : Water Soluble Cooling

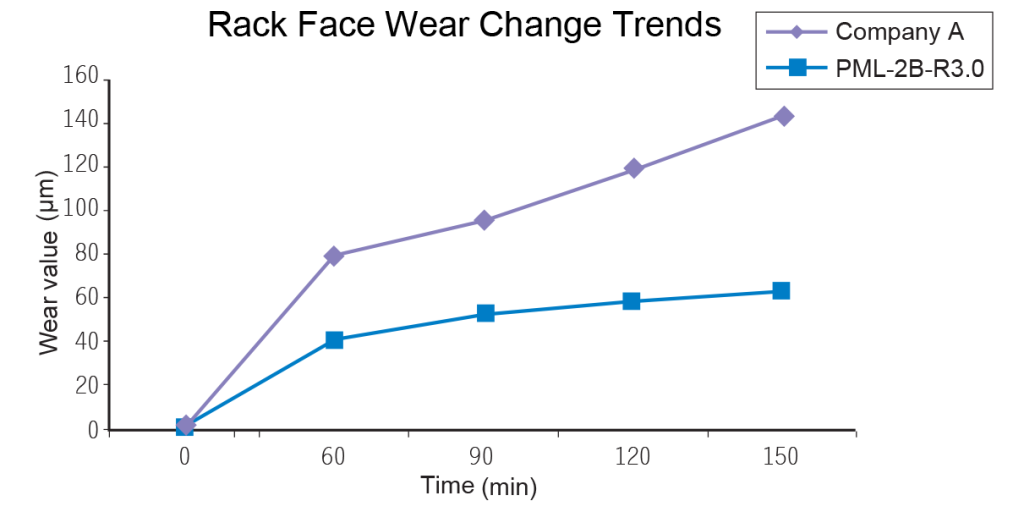

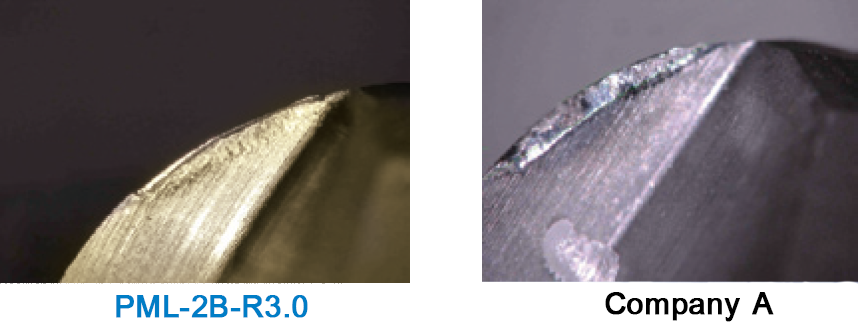

Rake face wear comparison after 150 min machining

PML-6

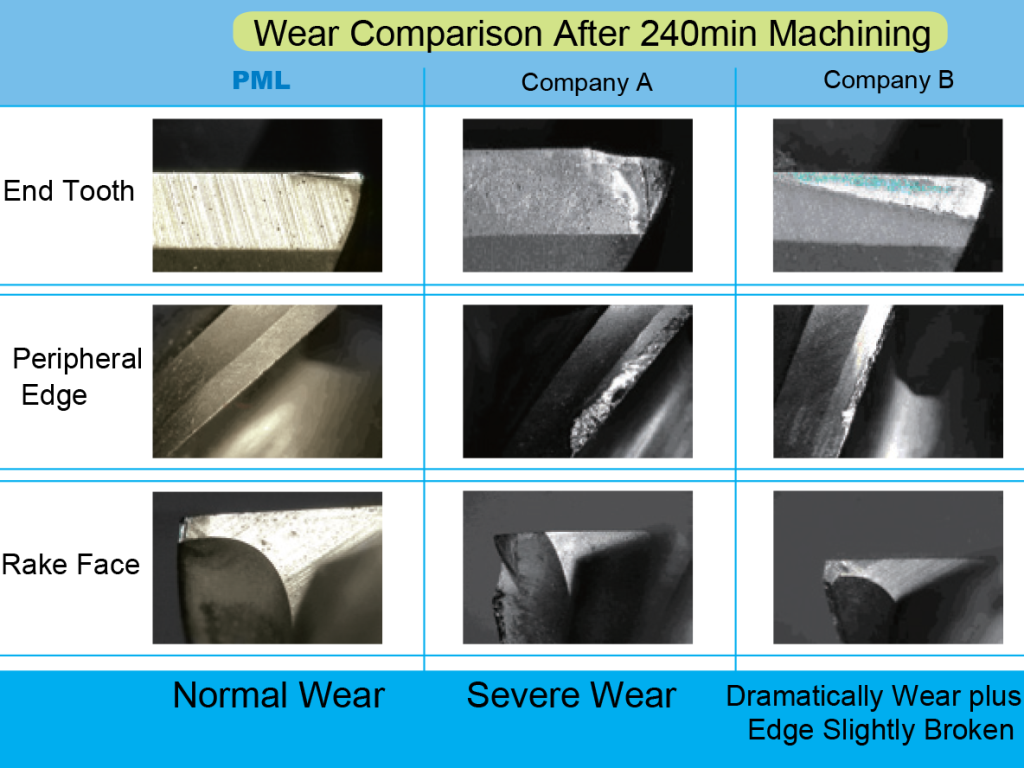

Wear Comparison

PML-7
