Chipbreaker

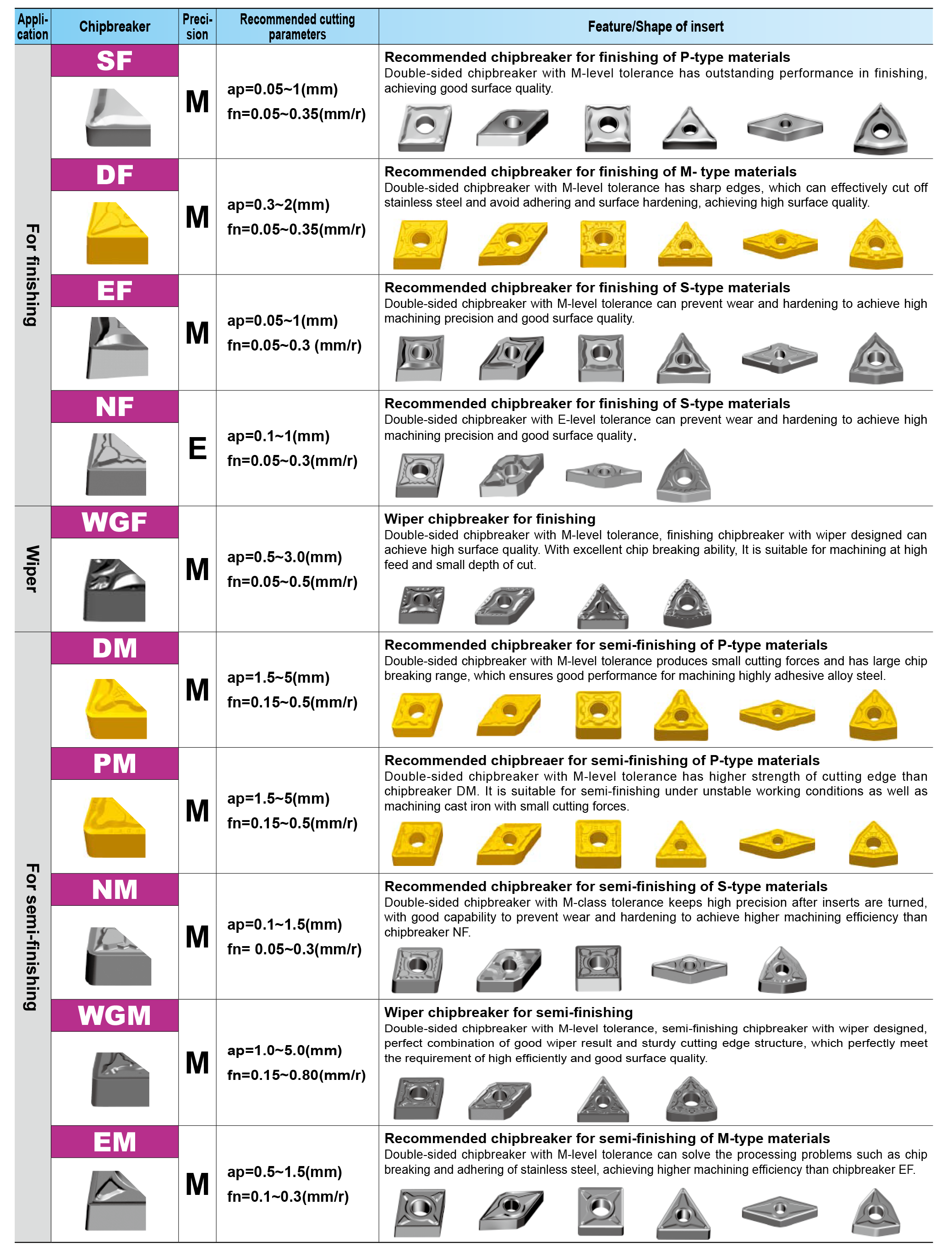

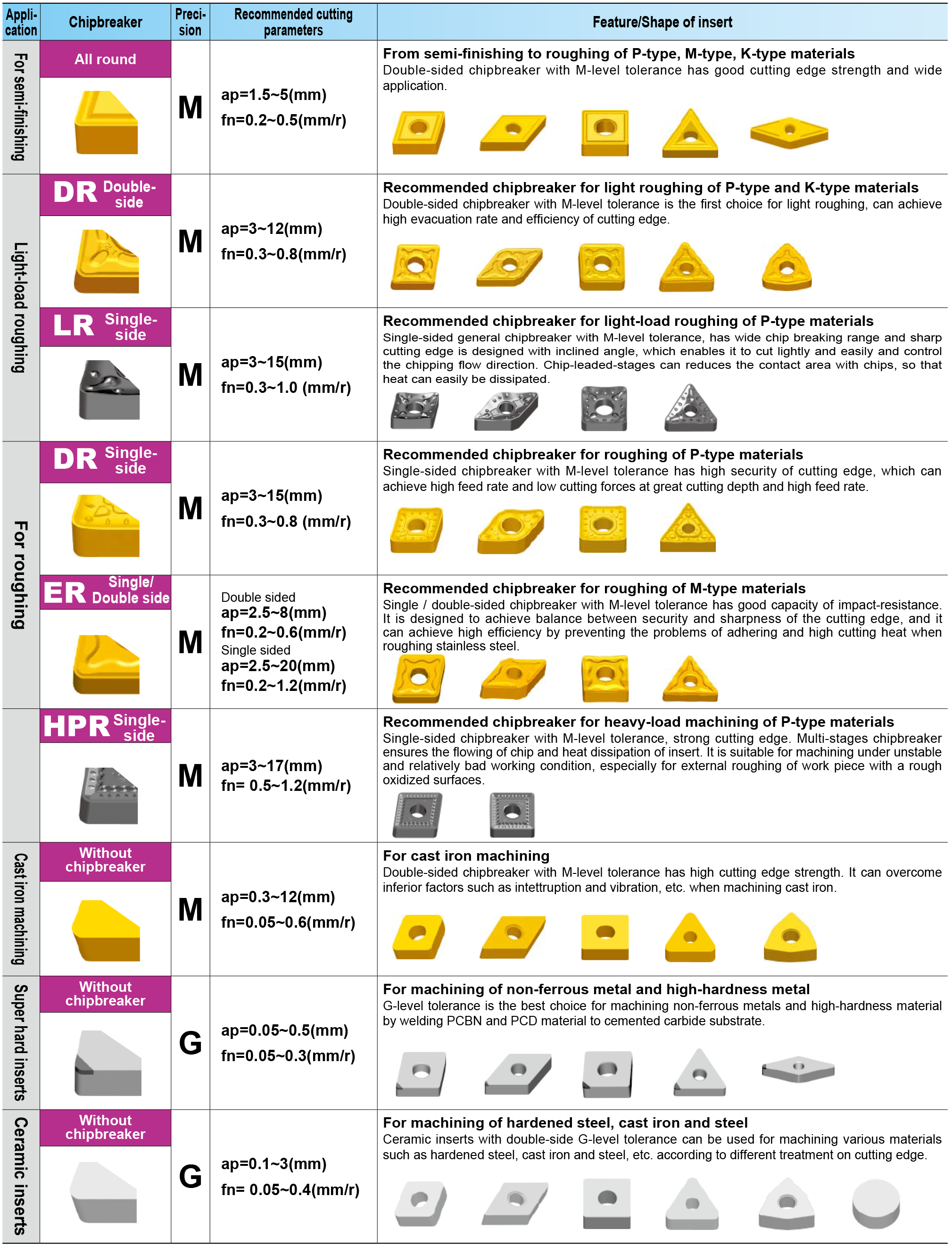

Negative inserts with hole

chipbreaker1

chipbreaker2

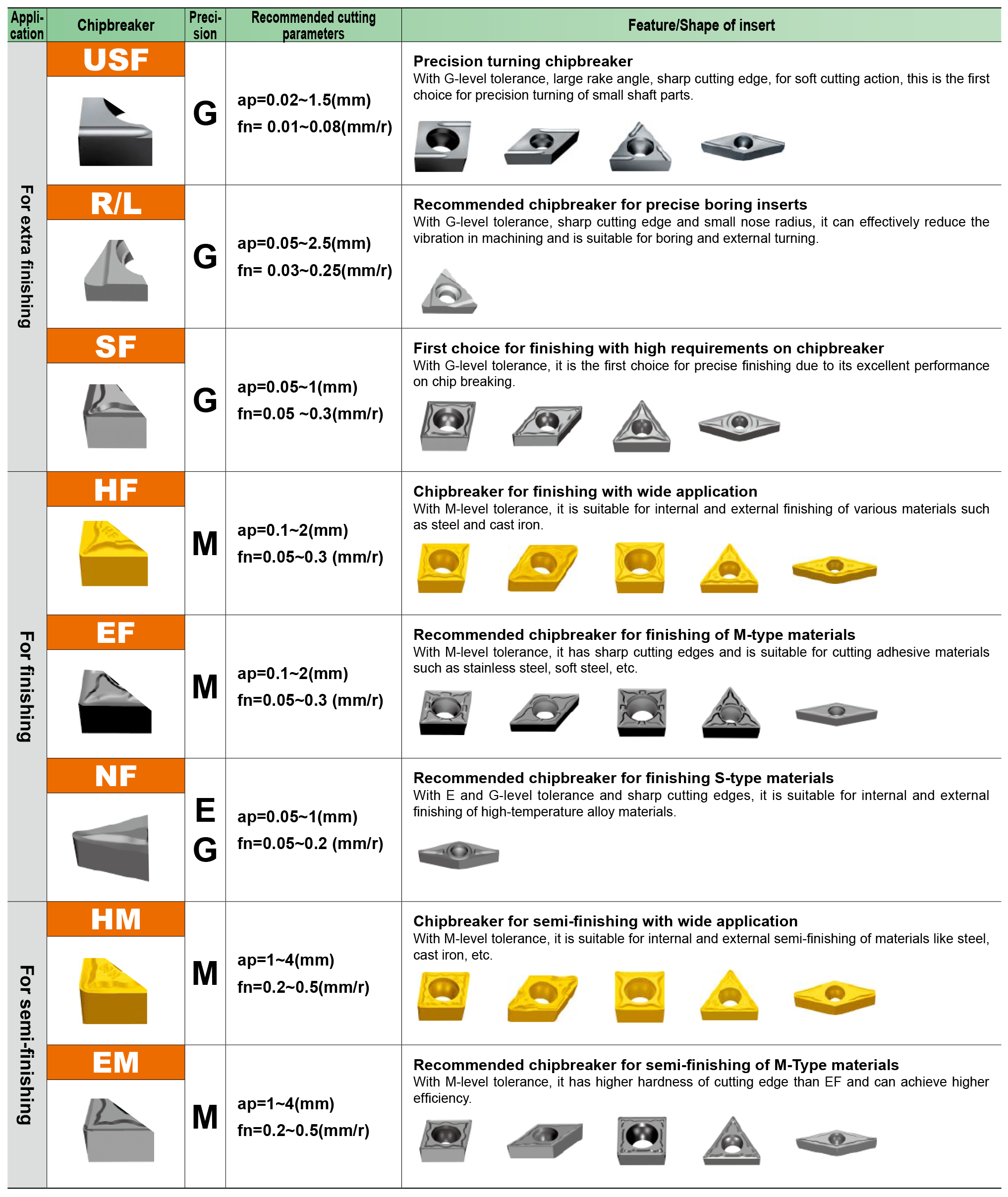

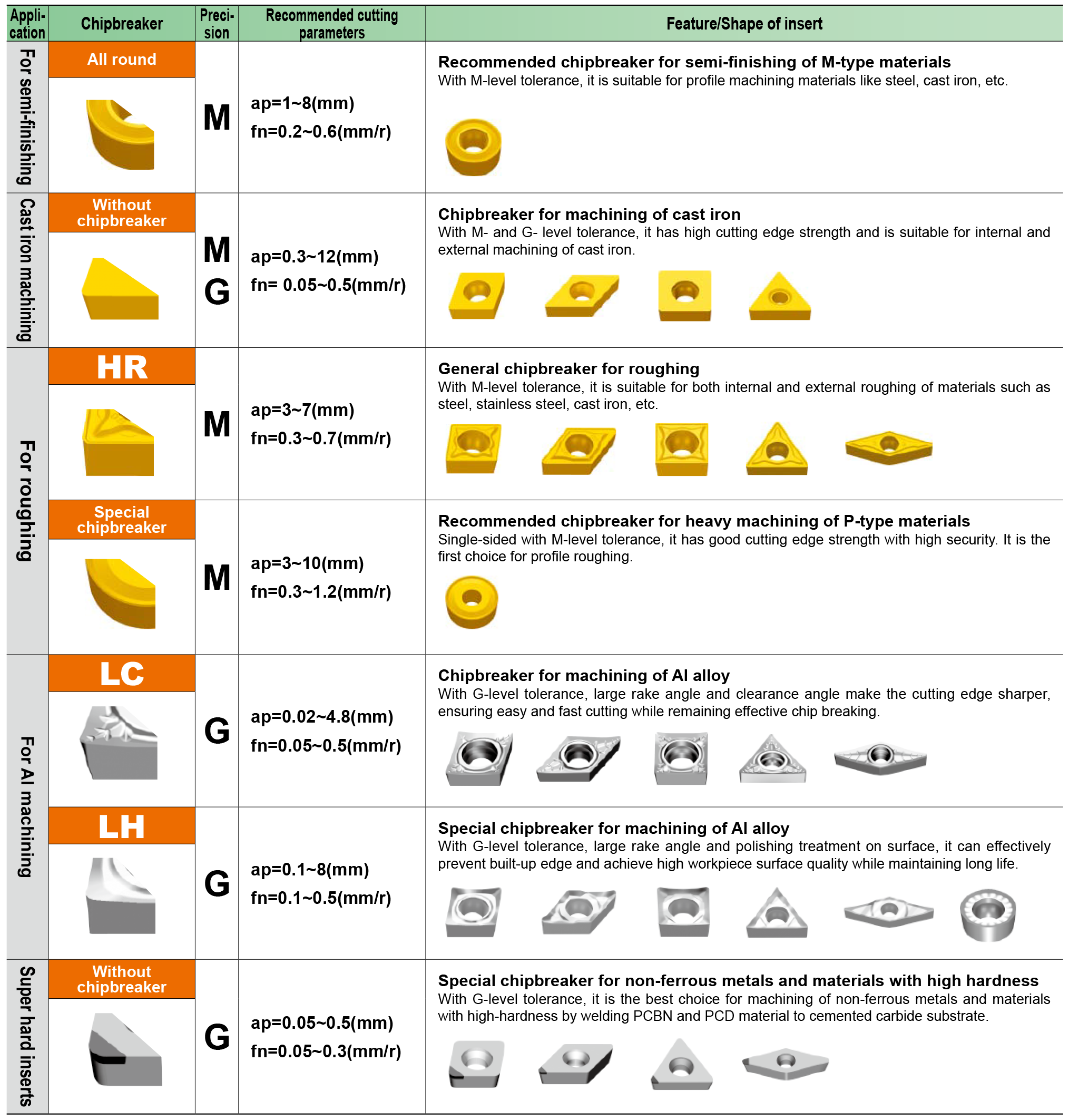

Positive inserts with hole

chipbreaker3

chipbreaker4

Chip breaking range reference for general turning inserts

chipbreaker5

chipbreaker6

Cutting test for chip breaking range of general turning inserts

chipbreaker7

-USF Precision turning chipbreaker

  • Effective chip control due to the proper chipbreaker.
  • Large rake angle makes cutting easier and faster.
  • Nose radius precision controlled within 0.02mm for excellent machining precision.
  • Special surface after-treatment for better surface quality.
  • High strength screw clamping ensures good repeatability and accuracy .

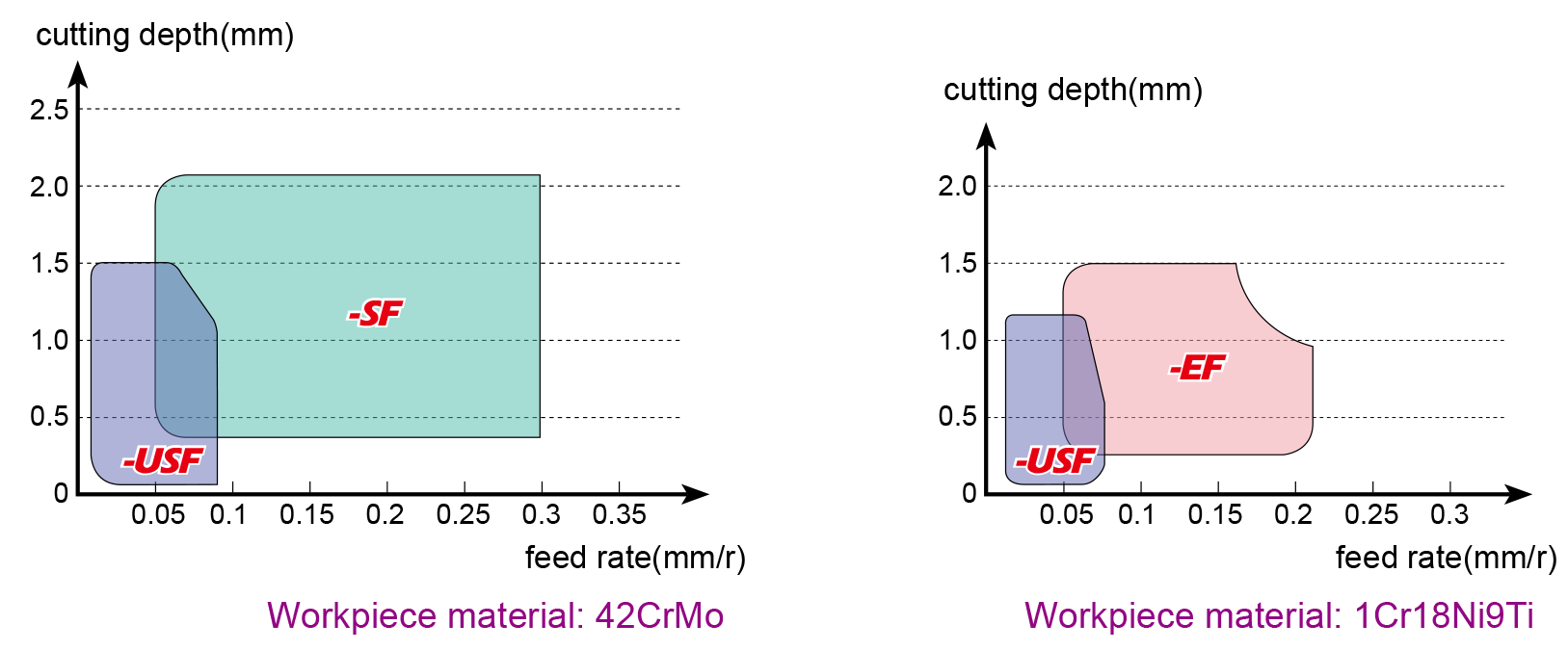

Application range of USF chipbreaker

chipbreaker8

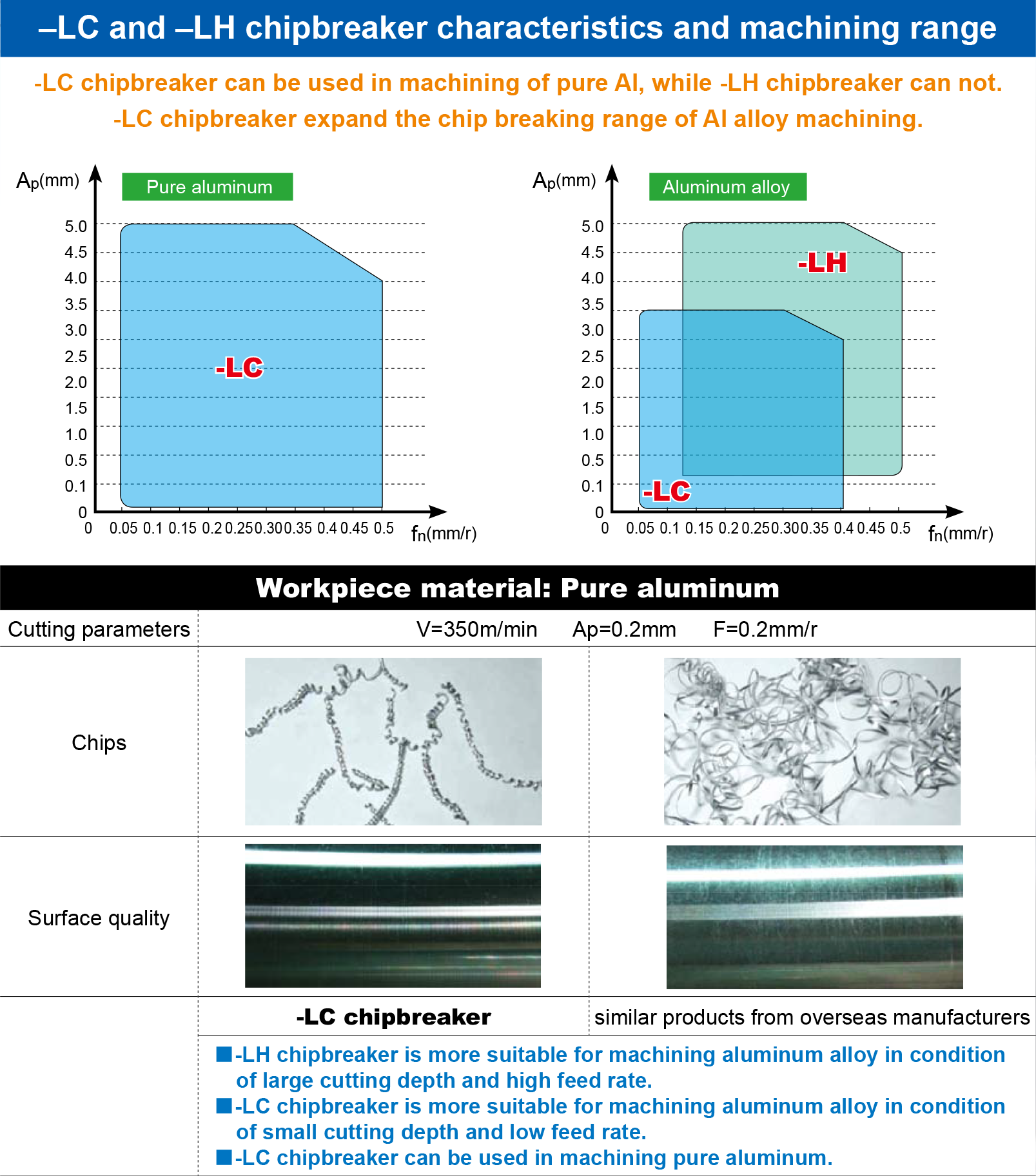

-LC chipbreaker for aluminum

  • -LC inserts are designed with a special chipbreaker. Large rake angle and clearance angle make the cutting edge sharper, ensuring easier cutting while remaining effective chip breaking
  • Achieved the mirror rake face after special treatment. Reduced the friction resistence, and stick free. Accordingly, make the chip removal fluently and improve the surface quality and tool life.
  • The G-class tolerance of insert, higher Repeated Position Accuracy, at the same time, it can
    effectively avoid the vibration during the machining process.

chipbreaker9

chipbreaker10

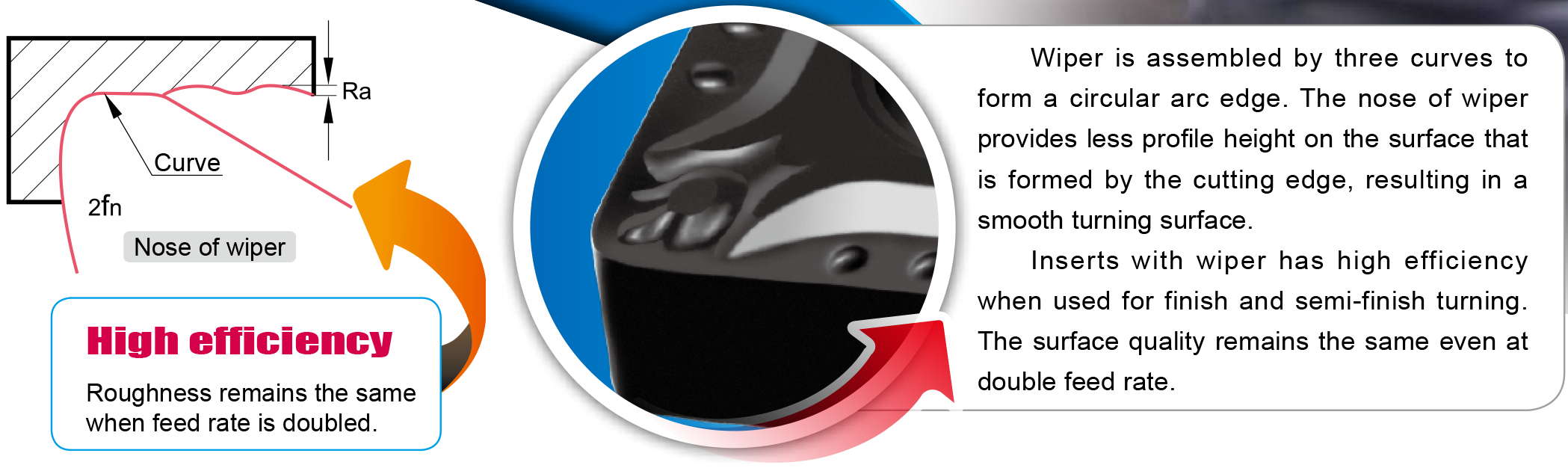

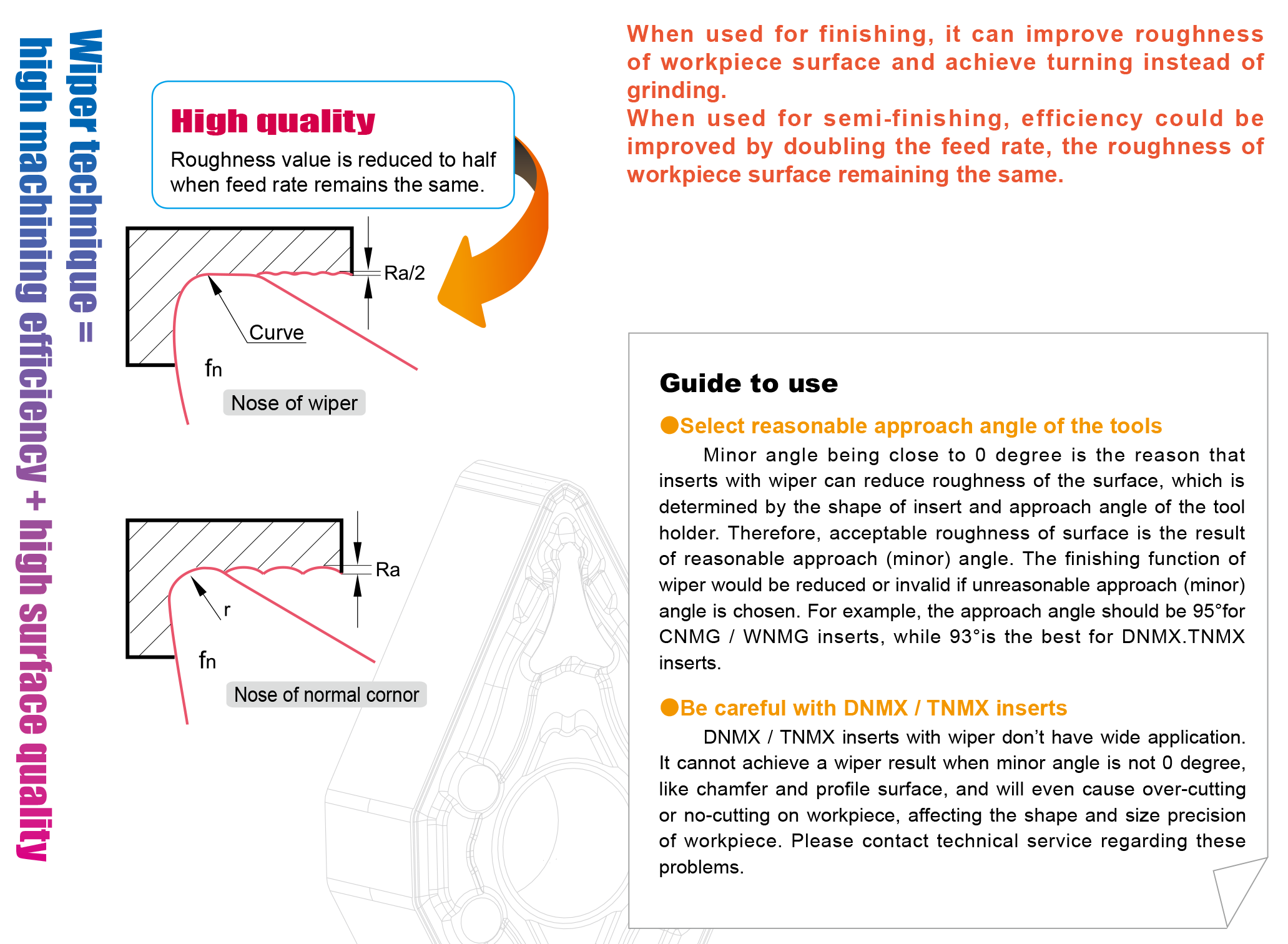

-WGF/WGM chipbreaker series Turning inserts with wiper

chipbreaker11

chipbreaker12

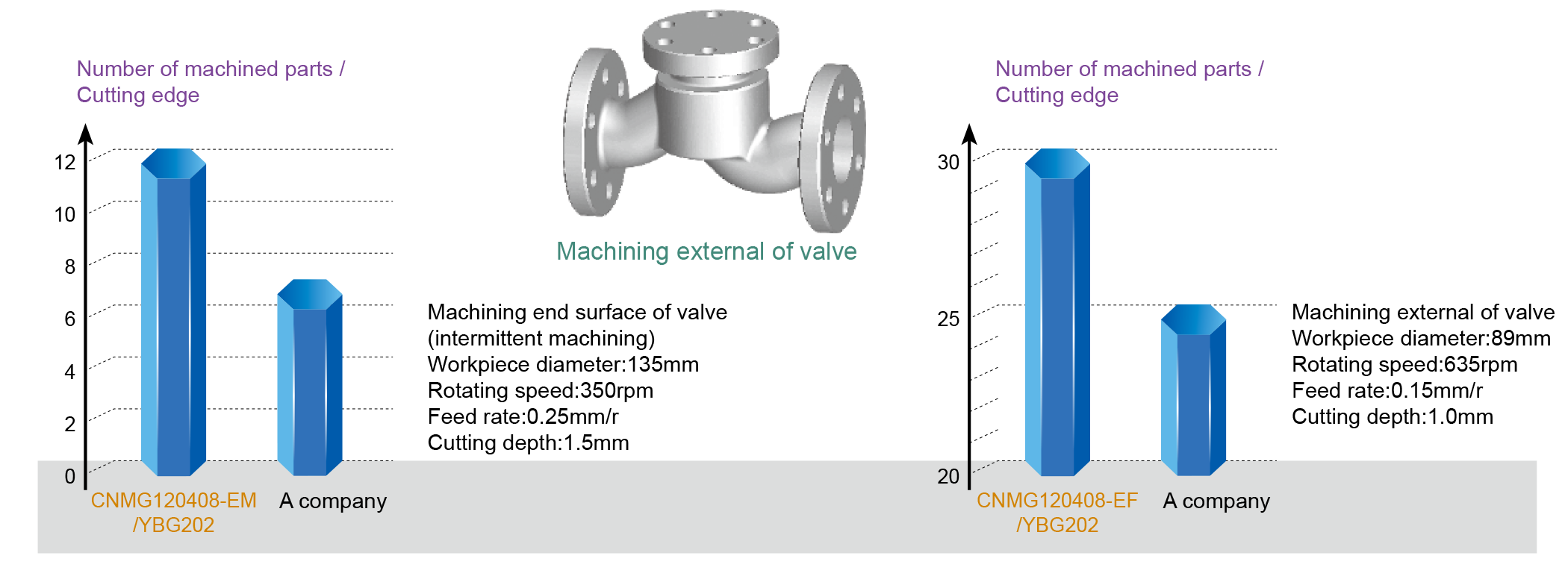

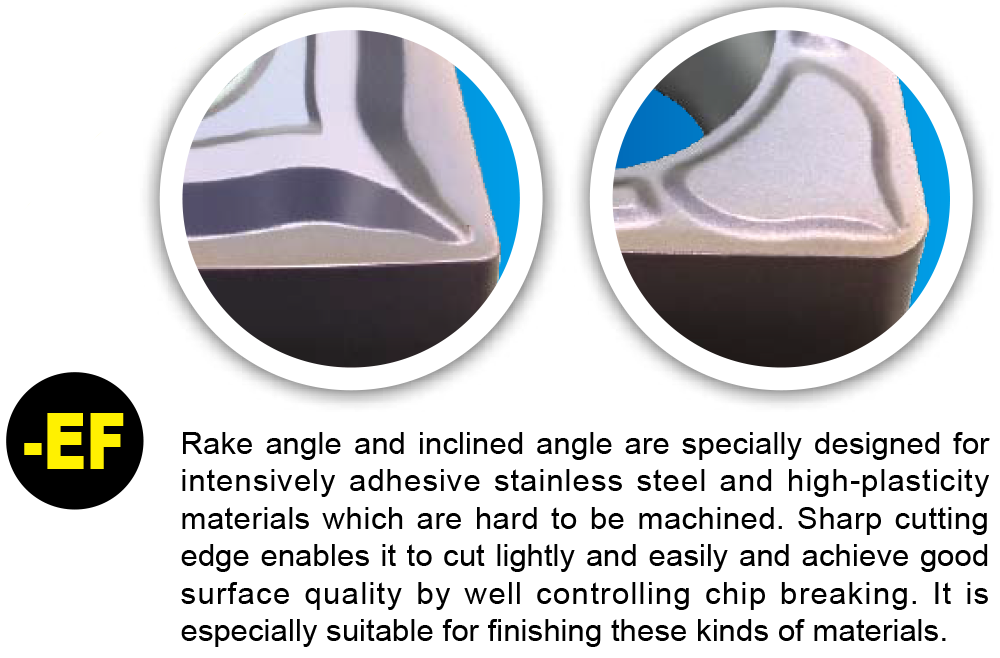

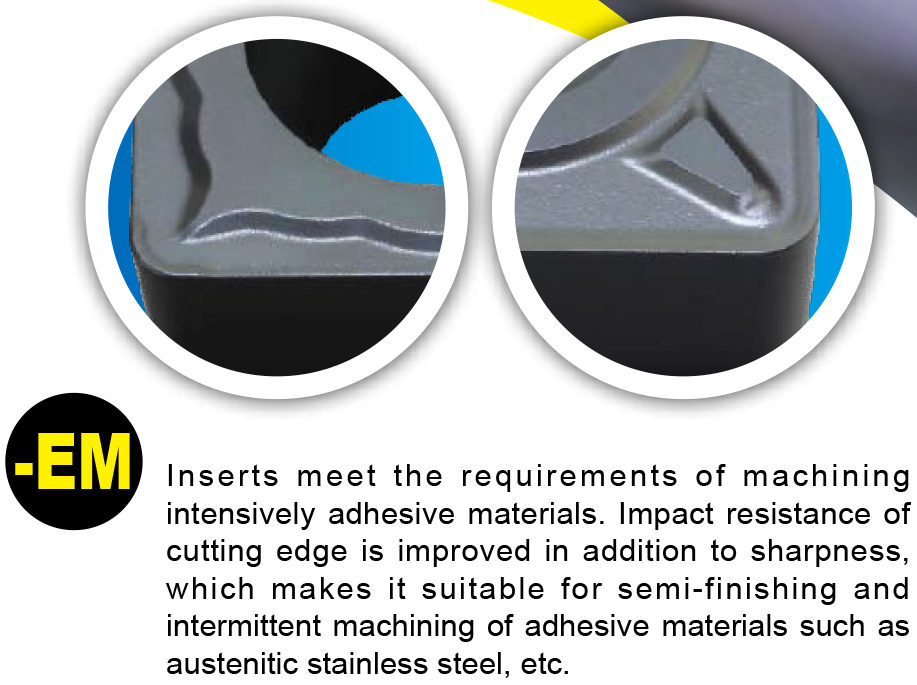

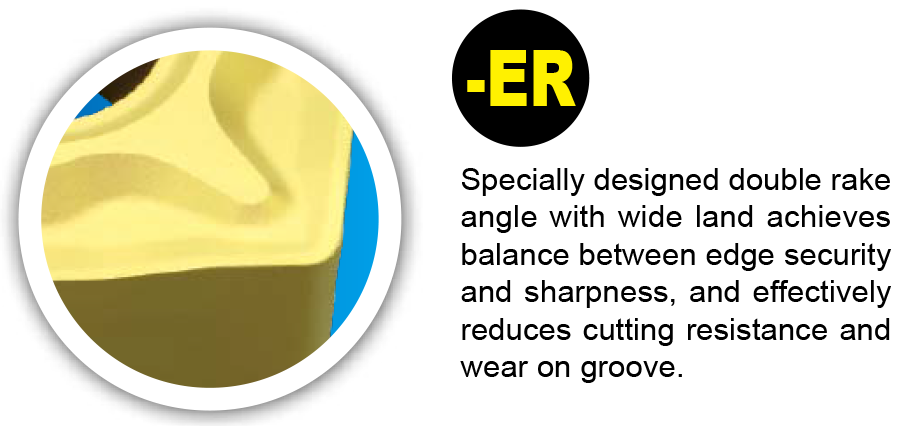

-EF -EM -ER

Specially designed for machining intensively adhesive and high-plasticity materials such as stainless steel, etc

chipbreaker13

chipbreaker14

chipbreaker15

chipbreaker16

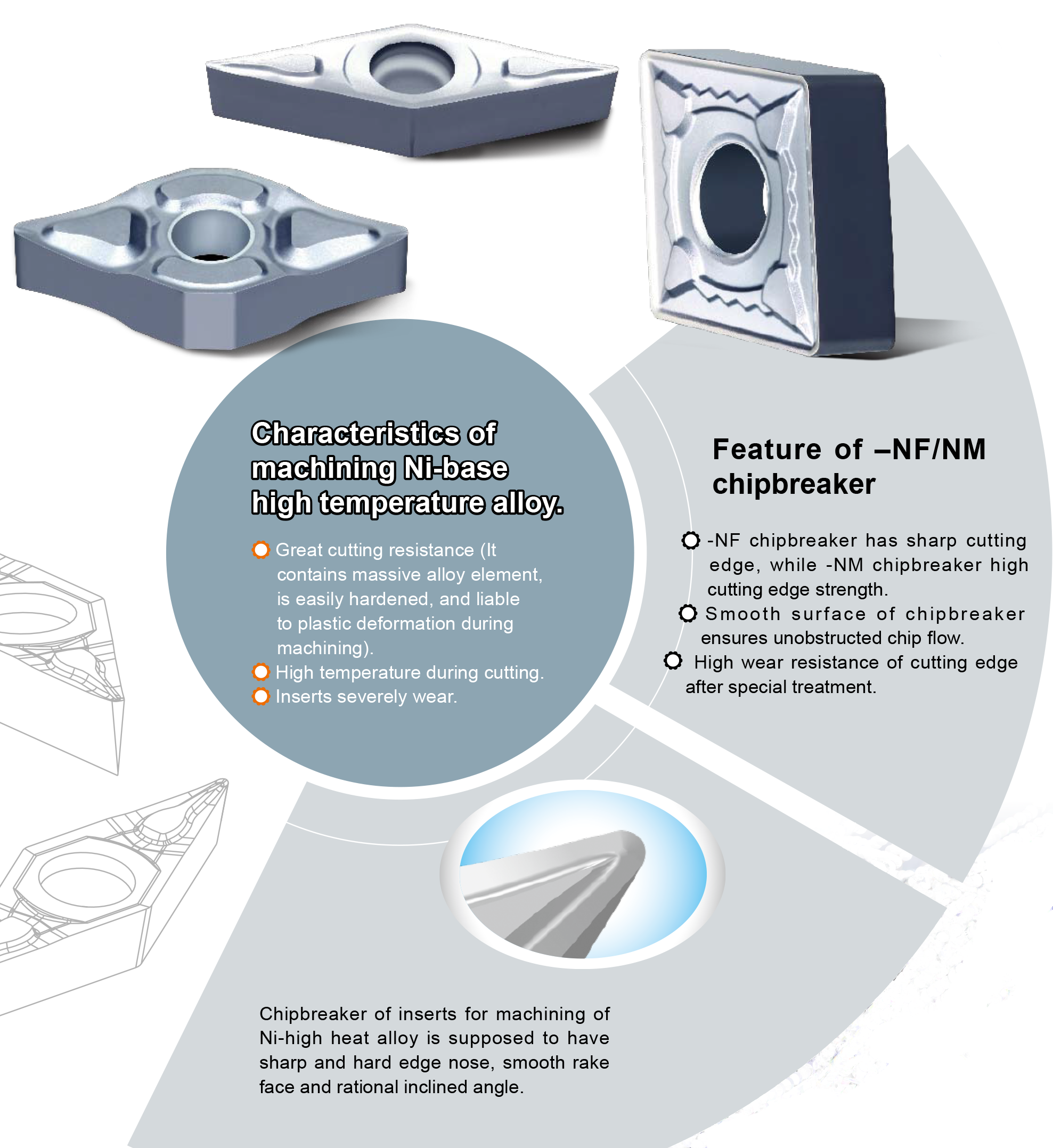

-NF/NM

Overcome difficulties on machining Ni- base high temperature alloy

chipbreaker17

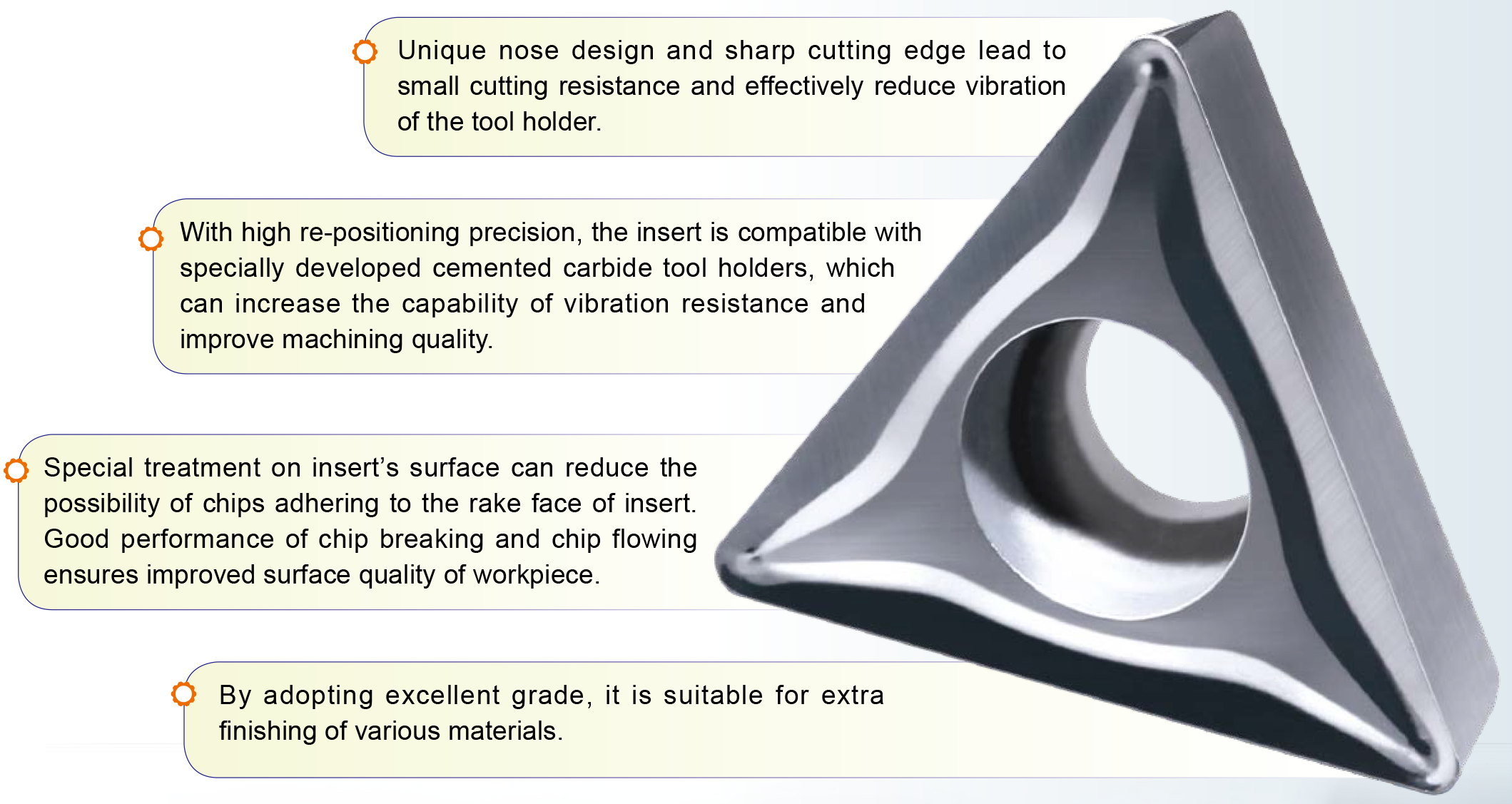

-SF chipbreaker for finishing

chipbreaker18

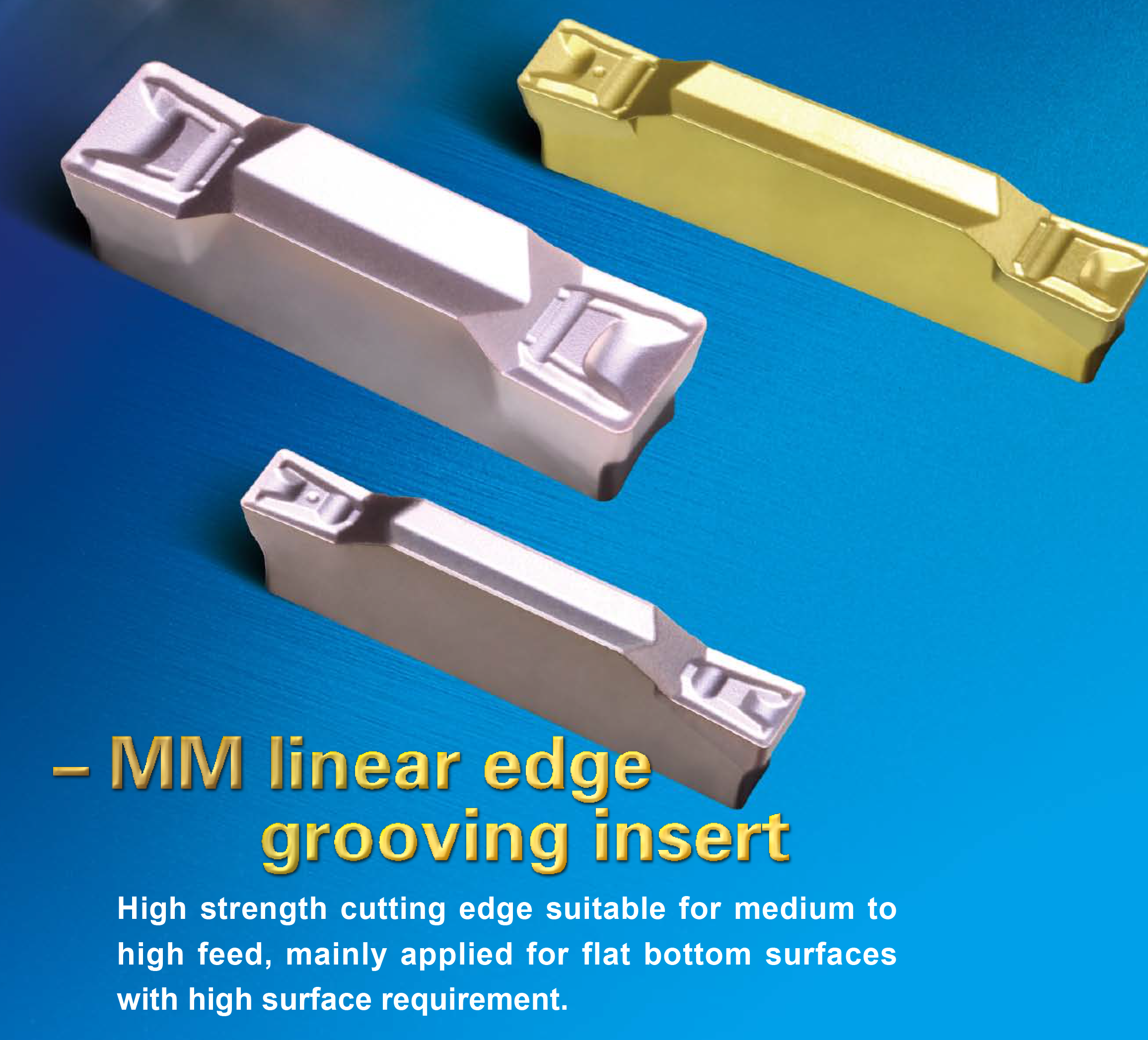

Little squirrel series

chipbreaker19

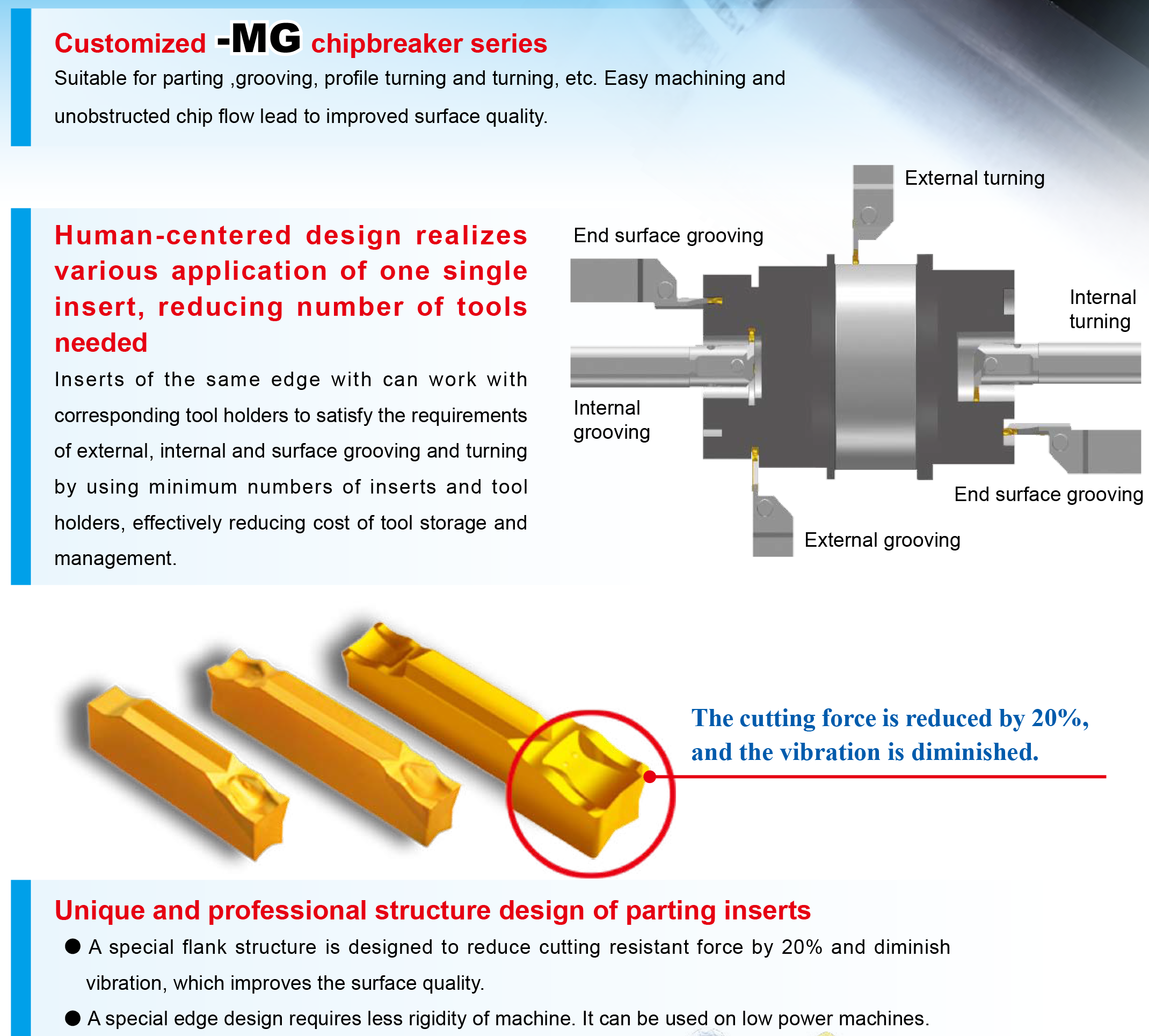

-MG

chipbreaker20

-EG

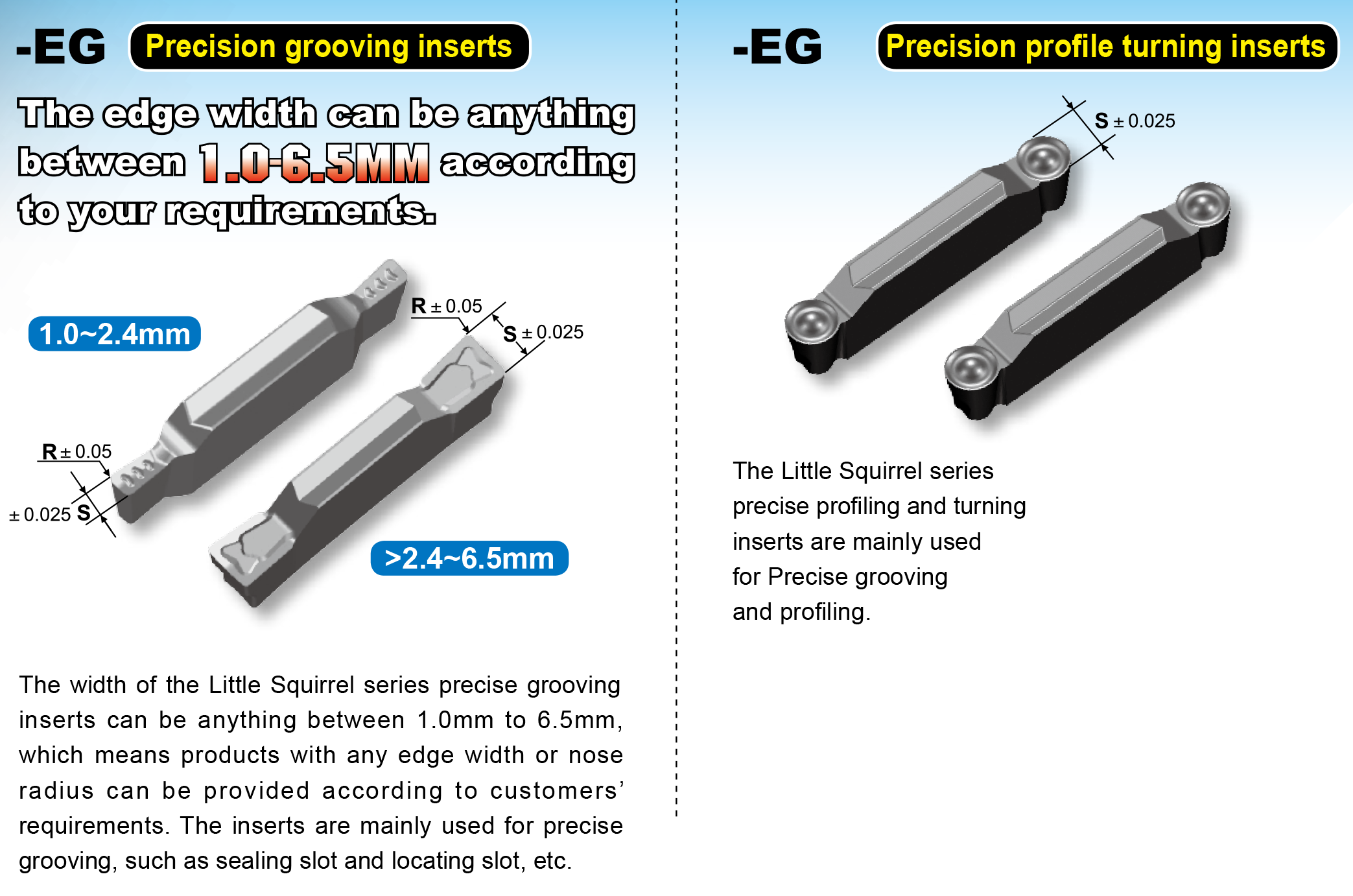

Precision grooving and profile turning inserts

chipbreaker20

Special chipbreaker design, suitable for precise grooving of low-carbon steel, stainless steel, adhesive materials and non-ferrous metal.

The tolerance of the edge width S of precise grooving and profiling inserts can reach ±0.025. Inserts can also be mounted on the corresponding specifications of original tool series.

chipbreaker21

chipbreaker22
