Double-Side Face Milling

administratorNew Products

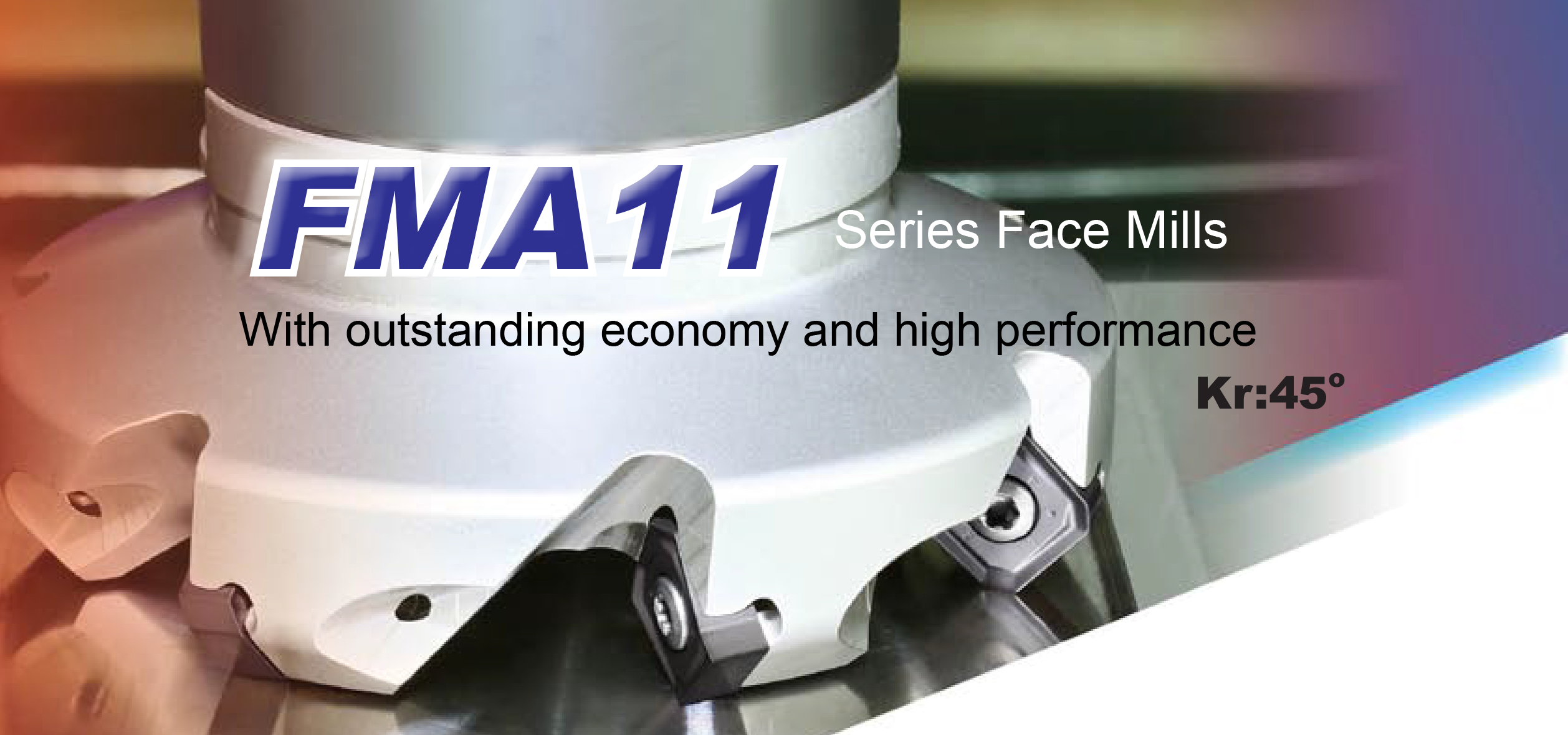

FMA11-1-1

FMA11

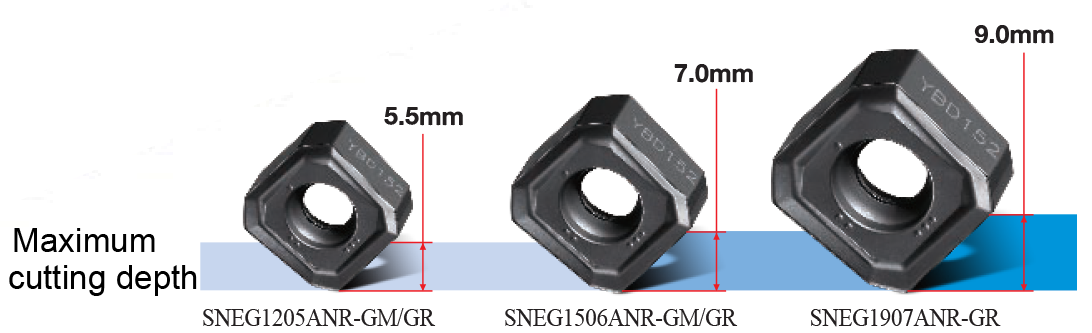

Complete range of insert sizes and geometries for various depths of cut and machining conditions

FMA11-2

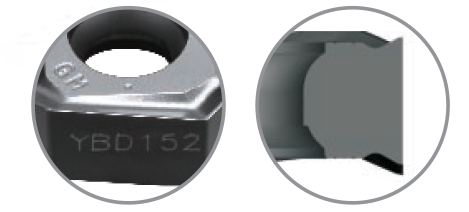

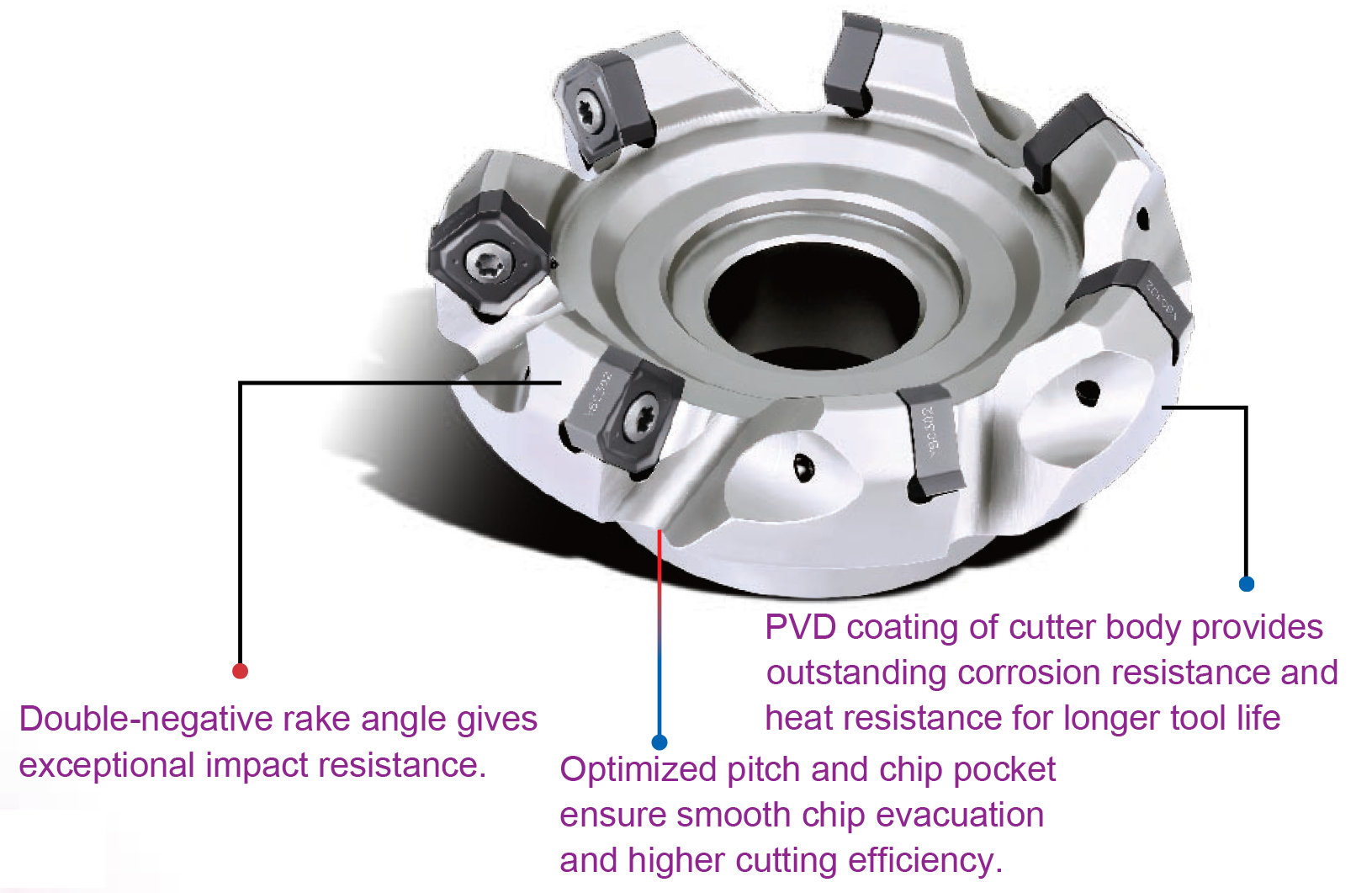

Unique geometry with large rake angle for excellent chip evacuation and low cutting force

FMA11-2-1

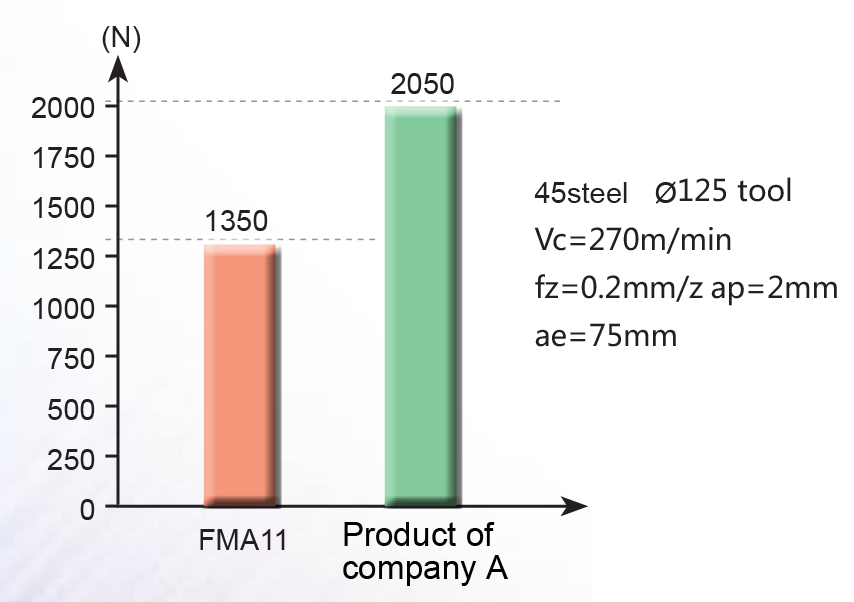

FMA11-2-2

FMA11-2-3

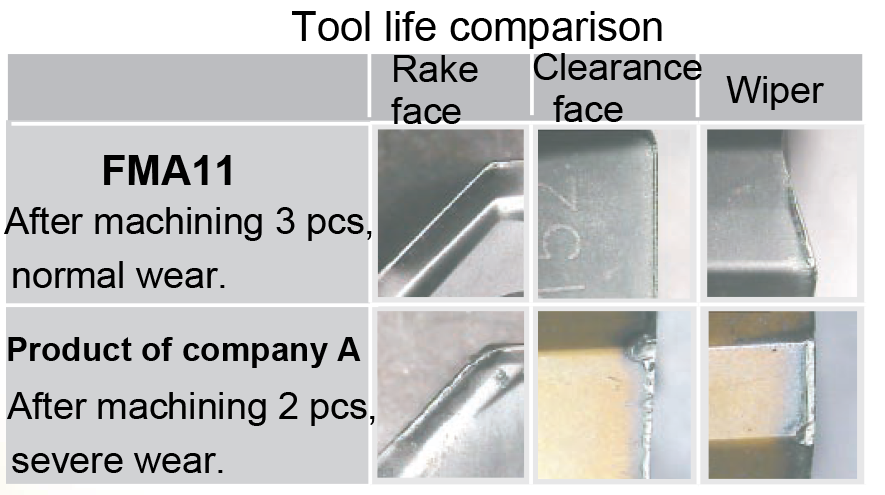

Case (Comparison of tool life)

  • Workpiece : HT300
  • Operation : Face milling
  • Tool : FMA11-125-B40-SN12-08
  • Insert : SNEG1205ANR-GM/YBD152
  • Cutting data : Vc=300m/min fz=0.3 mm/z ap=3mm ae=80mm

FMA11-2-4

FMA12

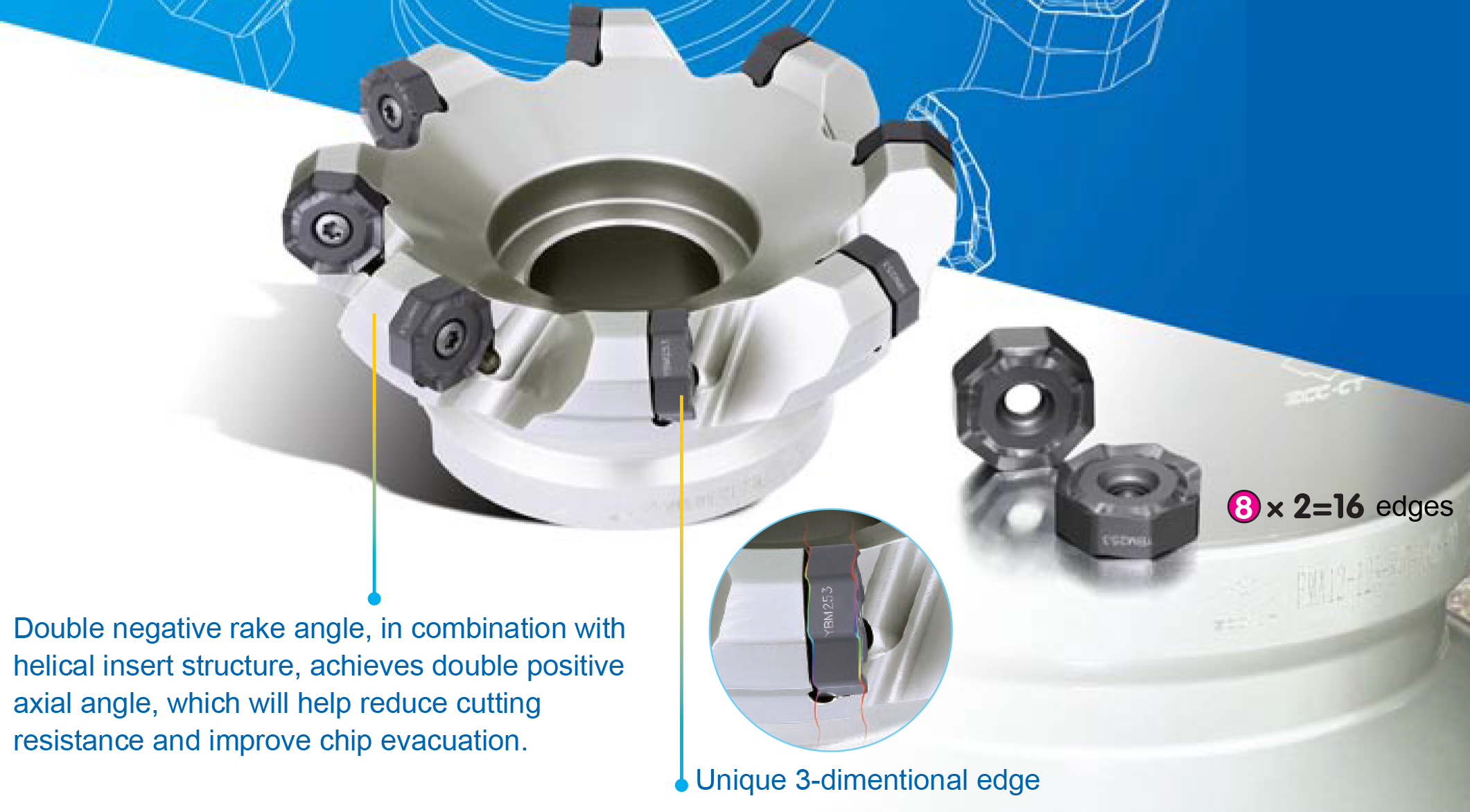

High Performance Face Mill with 16 edges for outstanding economy

FMA12-1

Case (Cast iron machining)

FMA12-2
  • Workpiece : Cylinder
  • Workpiece material : Gray cast iron (HB250)
  • Machining location : Milling 4 sides
  • Tool : FMA12-160-C40-ON08-10
  • Insert : ONHU08T624R-GM/YBD152
  • Cutting data : Vc=150m/min，fz=0.25mm/z，ap=3mm，ae=160mm
  • System of cooling : External

FMA12-2-1

Case (Steel machining)

FMA12-2-2
  • A36（HB180~220）
  • Operation: Face milling
  • Tool : FMA12-200-C60-ON08-12
  • Insert : ONHU08T624R-GM/YBM253
  • Cutting data : Vc=250m/min，fz=0.15mm/z ，ap=3mm，ae=125mm

FMA12-2-3

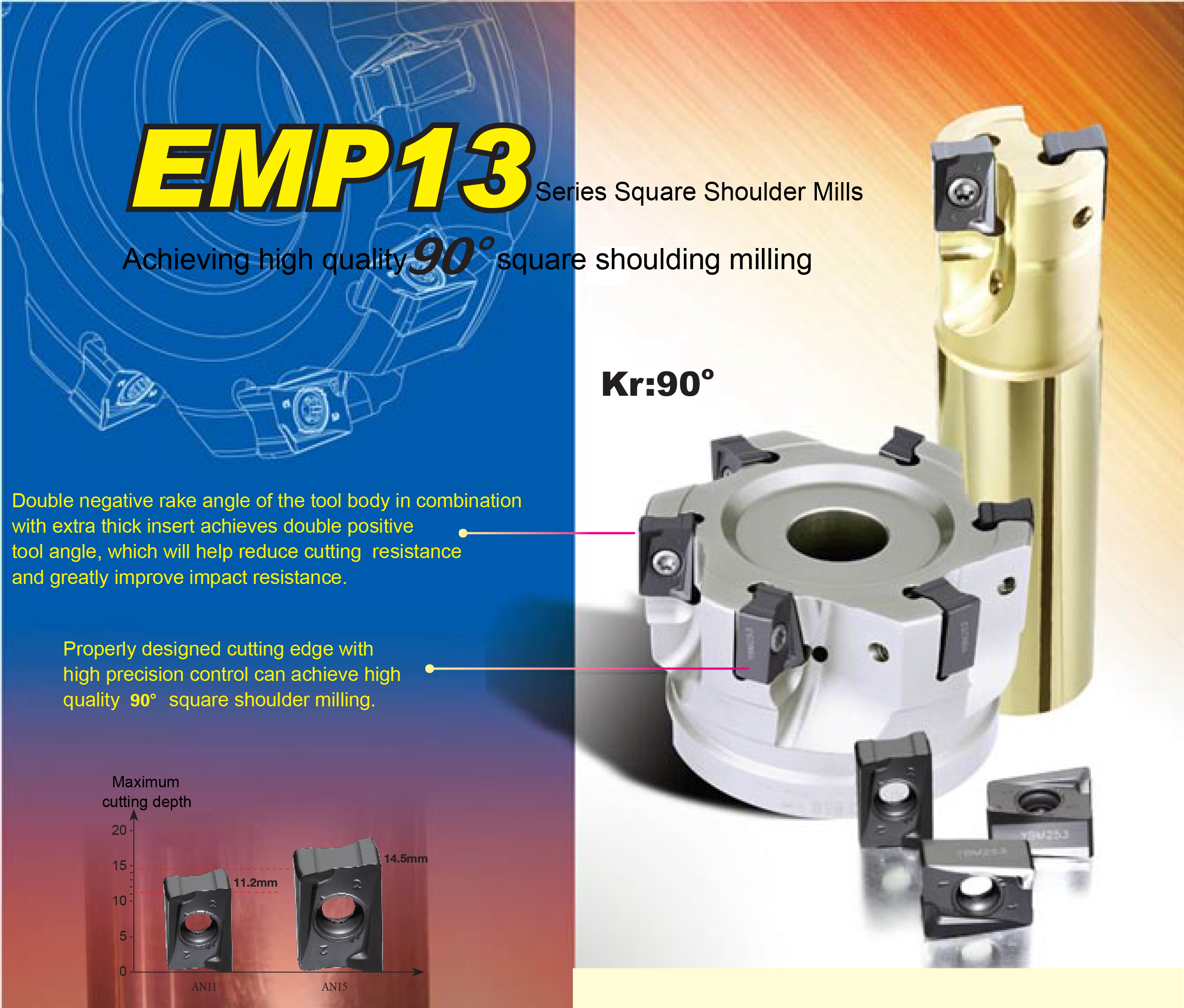

EMP13

EMP13-1

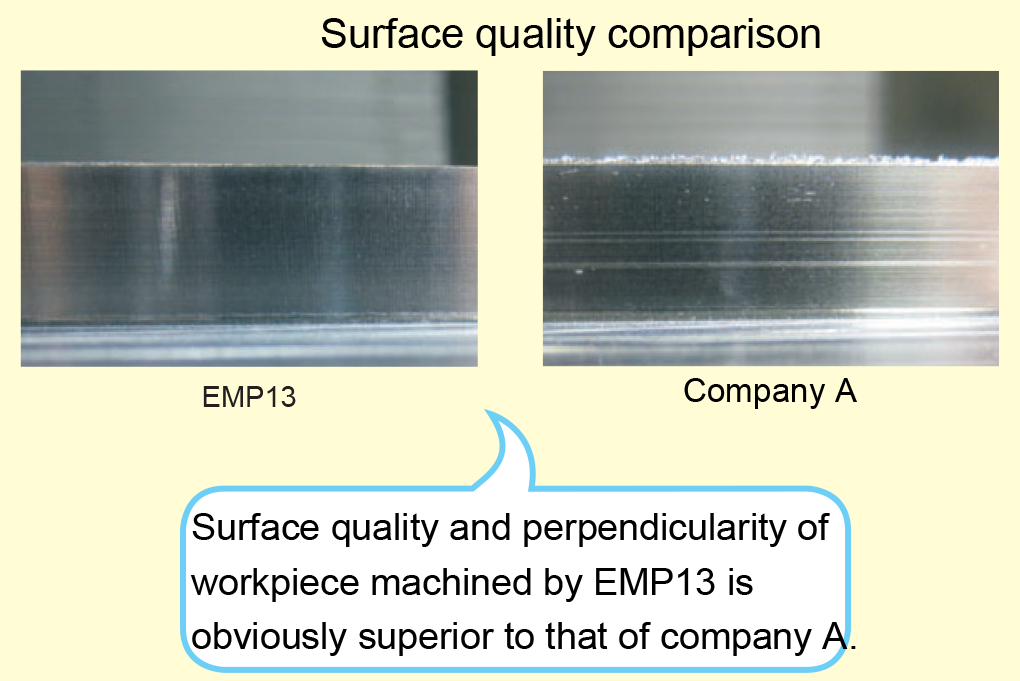

Case (Machining quality)

  • Workpiece material : NAK80（HRC36）
  • Tool : EMP13-032-G32-AN15-02
  • Insert : ANGX150608PNR-GM/YBG205
  • Cutting data : Vc=220m/min，fz=0.1mm/z，ap=14.5mm，ae=10mm
  • Cutting condition : Dry cutting

EMP13-2
